2 Port Valve

Our comprehensive range of 2-port solenoid valves are designed to operate in different media such as air, water, oil, steam and vacuum. It comprises wide variety of body materials (aluminum, resin, brass and stainless steel), seal materials (NBR, FKM) and solenoid coil (class B, class H). Many series and sizes are available for different applications of fluids.
solenoid valve

NEW VDW SeriesVXF2 SeriesVXD SeriesSGC2/3/4 SeriesVNA SeriesVCH40/VCH410 Series
2 port valvesolenoid valve

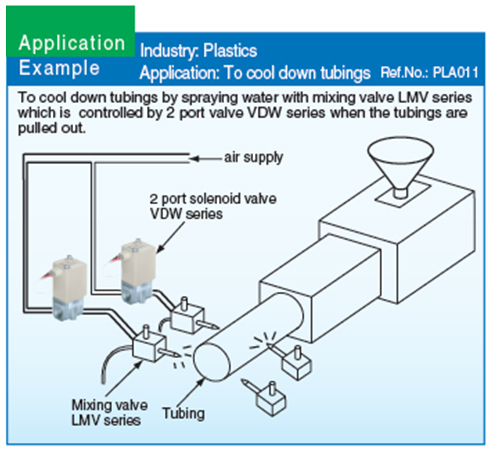

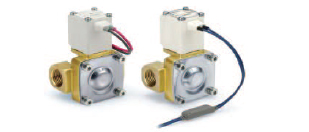

Compact Direct Operated 2 Port Solenoid Valve (Water . Medium vacuum . Air)

  • Compact – Lightweight
  • Enclosure IP65
  • Flame resistance UL94V-0 conformed
  • Large flow capacity
  • Improved armature durability
  • Low-noise construction Metal noise reduced by the rubber damper
  • Piping variations
2 port valvesolenoid valve

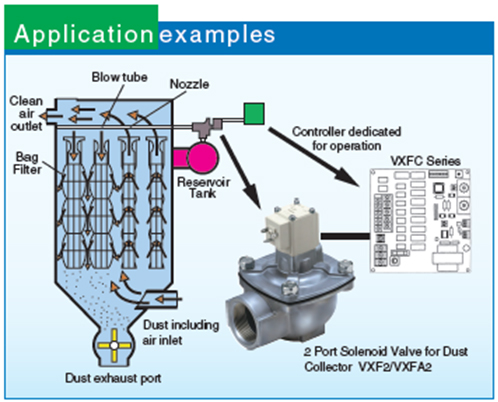

2 Port Solenoid Valve / Air Operated Valve for Dust

  • The bag filter is cleaned by shock wave which is created by high speed air jet
  • Function: to clean filter and articles or blow away workpieces
  • Fash response time
  • Large flow rate
  • Quick stop speed of main valve : 50ms
  • Various wiring methods can be selected
  • The valve controller turns ON/OFF many valves for the dust controller
2 port valve
2 port valve

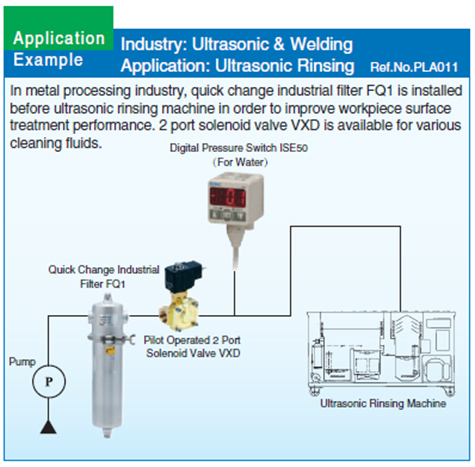

Pilot Operated 2 Port Solenoid Valve

solenoid valve2 port valve

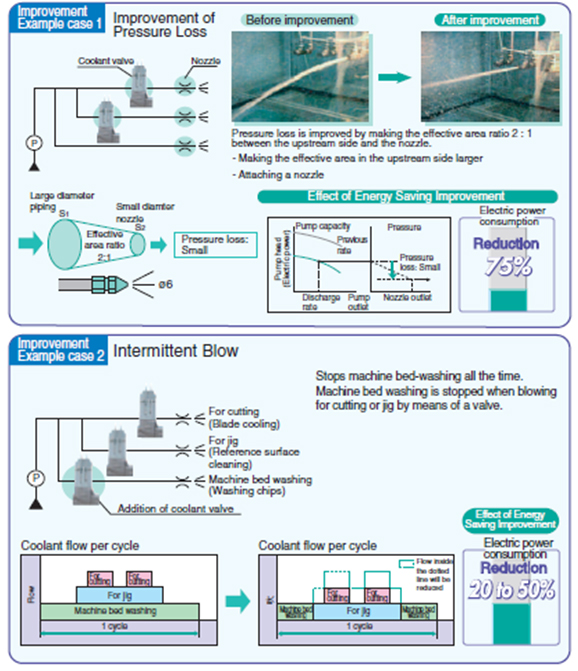

Coolant Valve

  • Service life: 5 million cycles or more
  • With auto switches for verifying whether the valve is open/closed
  • Flow increase 20 ~ 30%
  • Power consumption: Reduced by 90%
  • Water hammer: Reduced by 30%
  • Compilant with RoHS directive
2 port valvesolenoid valve

2 Port Valve for Compressed Air and Air-hydro Circuit Control (for various fluids)

  • Cyclinder actuation by external pilot air
  • The balance poppet permits normal and reverse flow
  • Operation from 0 MPa is possible
2 port valve2 port valve

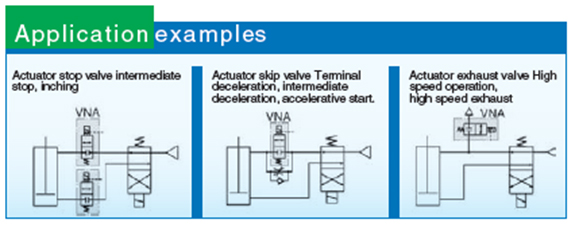

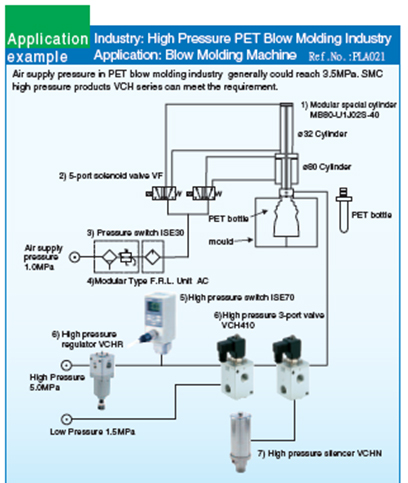

5.0 MPa Pilot Operated 2/3 Port Solenoid Valve & Check Valve
